Pan Head Screws Main Application Scenarios
Home appliance production
The assembly of televisions, refrigerators, ovens, coffee makers, and water dispensers all require the fastening of pan head screws.For the installation of large-sized televisions, a large number of pan head screws are needed to connect them.
Automobile production
The fastening of engine components and the connection of interior parts require pan head screws.
Furniture assembly
Connectors, hinges, or shelves used to secure fiberboard furniture such as cabinets, bookshelves, drawers, etc.Suitable for installing non high load-bearing parts such as backboards and side panels.
Fnterior decoration
Fixed skirting boards, decorative lines, wall panels and other fiberboard materials.Install bases for lightweight electrical appliances such as lighting fixtures and switch panels.
Technical Parameters:
| D | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 |
| P | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| dk | Macx | 4 | 5 | 5.6 | 8 | 9.5 | 12 | 16 | 20 |
| Min | 3.7 | 4.7 | 5.3 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 |
| k | Max | 1.6 | 2.1 | 2.4 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
| Min | 1.46 | 1.96 | 2.26 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 |
| Drive Style | Phillips |
| Corrosion Resistance | Yes |
| Thread Diameter | 2-10mm |
| Head Style | Pan head |
| Thread Type | Coarse |
| Length | 10-60mm |
Advantage:
Stainless steel pan head bolts contain chromium (≥ 10.5%) to form a passivation film, effectively resisting damp, acidic and alkaline environments (such as coastal/chemical scenes), avoiding rusting and contaminating media, and meeting the application requirements of food grade (304/316).Its disc head design provides a larger pressure bearing surface (30% increase in contact area compared to a round head) with a tensile strength of 500-700MPa.
Packaging:
 |  |  |
| Carton Packaging | Outer Cartonbox Packaging | Pallet Packaging |
| Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request. | The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements. | The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation. |
Product Tags:
|
|

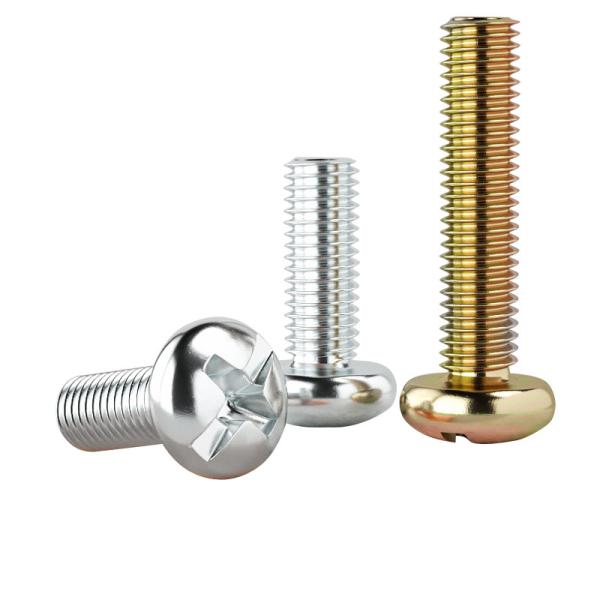

Corrosion Resistant 304 Stainless Steel Screws M8 Cross Recessed Head Machine Screw Images
|
